Infrastructure. Performance Rotors

Inspection Methods
of Unparalleled Performance

In Brief

Infrastructure.

Infrastructure.

No more high-risk inspections via rope-access or gondolas, as drone inspections have proven to significantly reduce inspection times, human-risks and costs.

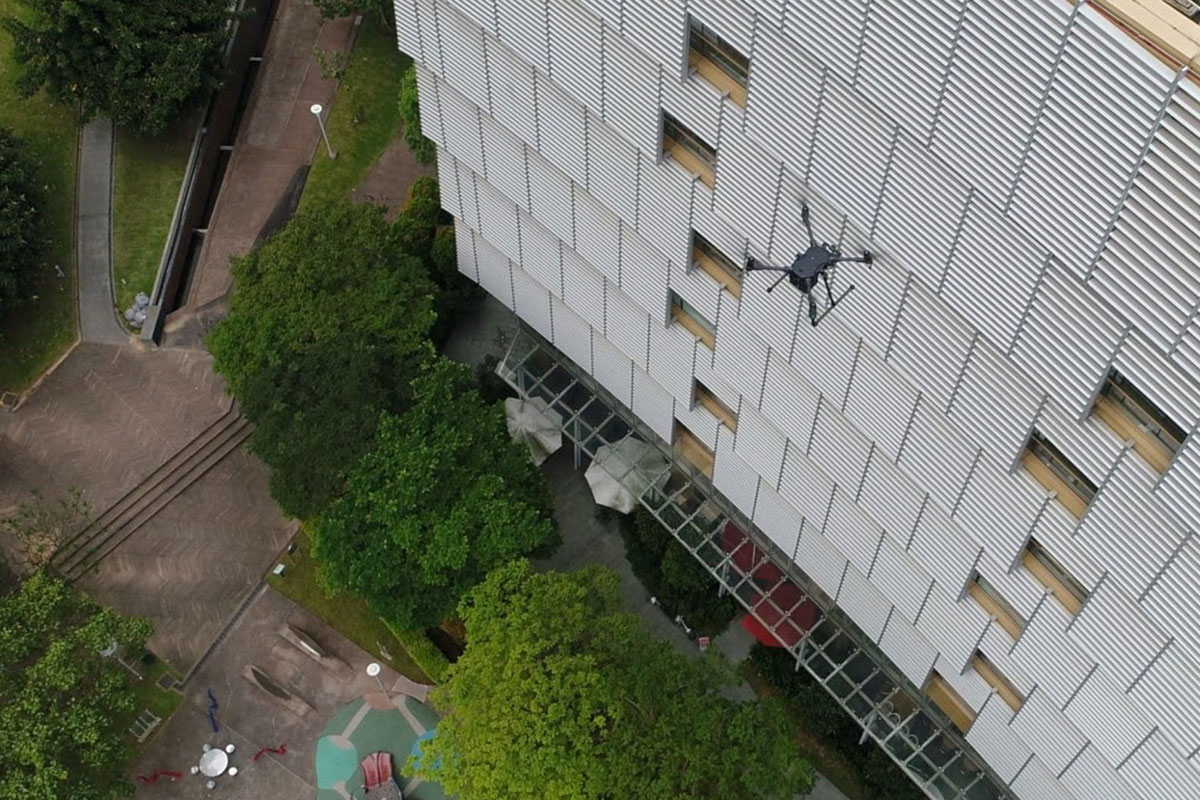

Buildings and Bridges.

null

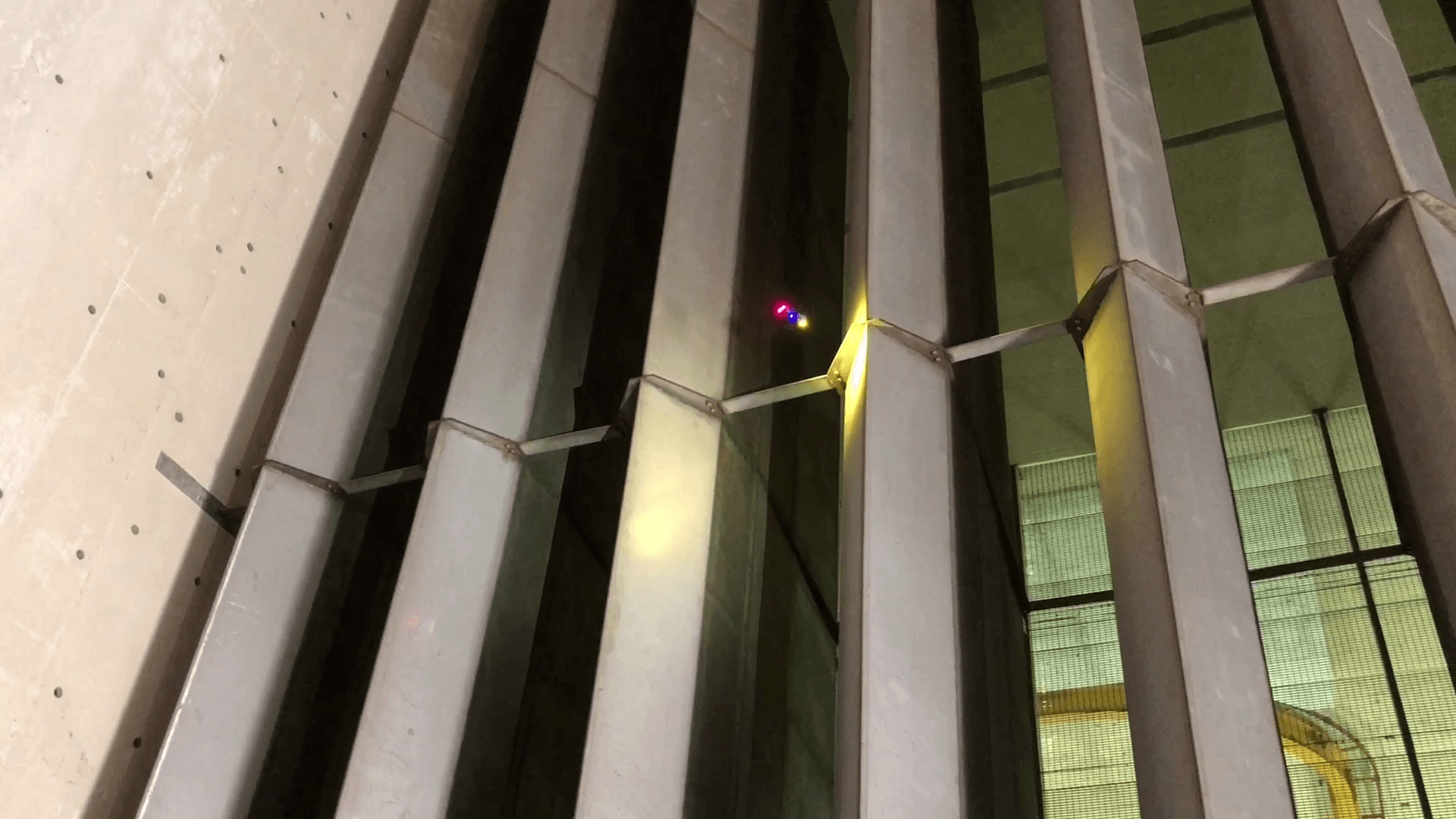

A Comprehensive Visual and Thermal Inspection.

Seamless drone inspections even in areas of high
building density, strong wireless interference
and GPS-denied locations.

Power Lines.

Our experienced flight operators are trained and
equipped with a comprehensive selection of
drones capable of acquiring close-
proximity data sets.

Solar Panels.

Drones can provide a low-cost, easy-to-deploy
inspection tool for solar farms.

vlcsnap-2021-05-21-22h24m29s237

3D Modeling Services.

Using the latest 3D technology, we can create a
detailed digital model of the asset from
the drone footage.

building 3D

Speak

Our Custom Solutions.

Speak to our project managers today to find out how our solutions can be applied for your use case!

We harness the power of custom-designed drones, AI and data analytics to streamline operations, reduce costs, and eliminate hazards in heavy industries that is unparalleled by mainstream drones in the market.

Mini Cart 0

Your cart is empty.

Meet RAVEN-VI, the smallest smart non-GPS assisted inspection drone

  • Compact mechanically and electrically protected airframe
  • 01. Small and compact 400*300mm 6.2” propeller frame
  • 02. Collision tolerant carbon fibre propeller guard design
  • 03. Isolated high power components for operations in zone 2 environments
  • Operates in GPS Denied Environment
  • 01. Onboard Position/ Altitude hold with responsive all round electronic collision avoidance
  • 02. Relative drone position available for inspection location identification
  • 03. Application base localisation for different environments and missions
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection/ navigation in pitch darkness
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • 04. Stabilized +-90 degrees vertical axis adjustment camera for smooth recordings of roofs, walls and floors
  • Multiple different configurations
  • 01. Visual Inspection Core - For visual inspections
  • 02. Customised Payload Core - Upon request
  • 03. Tethered/ Battery mode - All RAVEN models

DJI Matrice 300 RTK

  • Commercial drone platform
  • 01. Outdoor GPS Drone
  • 02. Anti-collision Sensors
  • 03. IP45 Rating
  • Transmission system
  • 01. 15 km Transmission range
  • 02. RC & Video frequencies 2.4GHz and 5.8GHz
  • 03. Max flight time of 55 mins
  • Payload: Zenmuse H20 Camera
  • 01. Hybrid camera which includes optical and thermal sensors
  • 02. 12MP Wide angle camera
  • 03. 20MP Zoom camera with 23x optical zoom
  • 04. 620 x 512 px Radiometric thermal camera
  • Payload: Zenmuse P1 Camera
  • 01. 45 MP Full-frame photography for Aerial Surveying
  • 02. High Global shutter speed of 1/2000 seconds
  • 03. TimeSync 2.0 allows for microsecond level of synchronization
  • 04. Fixed-focus 35mm len

Meet RAVEN-VI, the smallest smart non-GPS assisted inspection drone

  • Compact mechanically and electrically protected airframe
  • 01. Small and compact 400*300mm 6.2” propeller frame
  • 02. Collision tolerant carbon fibre propeller guard design
  • 03. Isolated high power components for operations in zone 2 environments
  • Operates in GPS Denied Environment
  • 01. Onboard Position/ Altitude hold with responsive all round electronic collision avoidance
  • 02. Relative drone position available for inspection location identification
  • 03. Application base localisation for different environments and missions
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection/ navigation in pitch darkness
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • 04. Stabilized +-90 degrees vertical axis adjustment camera for smooth recordings of roofs, walls and floors
  • Multiple different configurations
  • 01. Visual Inspection Core - For visual inspections
  • 02. Customised Payload Core - Upon request
  • 03. Tethered/ Battery mode - All RAVEN models

DJI Matrice 300 RTK

  • Commercial drone platform
  • 01. Outdoor GPS Drone
  • 02. Anti-collision Sensors
  • 03. IP45 Rating
  • Transmission system
  • 01. 15 km Transmission range
  • 02. RC & Video frequencies 2.4GHz and 5.8GHz
  • 03. Max flight time of 55 mins
  • Payload: Zenmuse H20 Camera
  • 01. Hybrid camera which includes optical and thermal sensors
  • 02. 12MP Wide angle camera
  • 03. 20MP Zoom camera with 23x optical zoom
  • 04. 620 x 512 px Radiometric thermal camera
  • Payload: Zenmuse P1 Camera
  • 01. 45 MP Full-frame photography for Aerial Surveying
  • 02. High Global shutter speed of 1/2000 seconds
  • 03. TimeSync 2.0 allows for microsecond level of synchronization
  • 04. Fixed-focus 35mm len
