Oil & Gas. Performance Rotors

Drone Solutions
beyond Visual Inspections

Oil & Gas

Explore.

Our Capabilities.

With our team of robotics engineers, certified inspectors and risk assessment planners, we have introduced both new technologies and procedures to supplement, if not replace, traditional inspection methods for quicker and safer deployments. This includes Ultrasonic Thickness Measurement capabilities on top of visual data capture.

Plant Inspection.

null

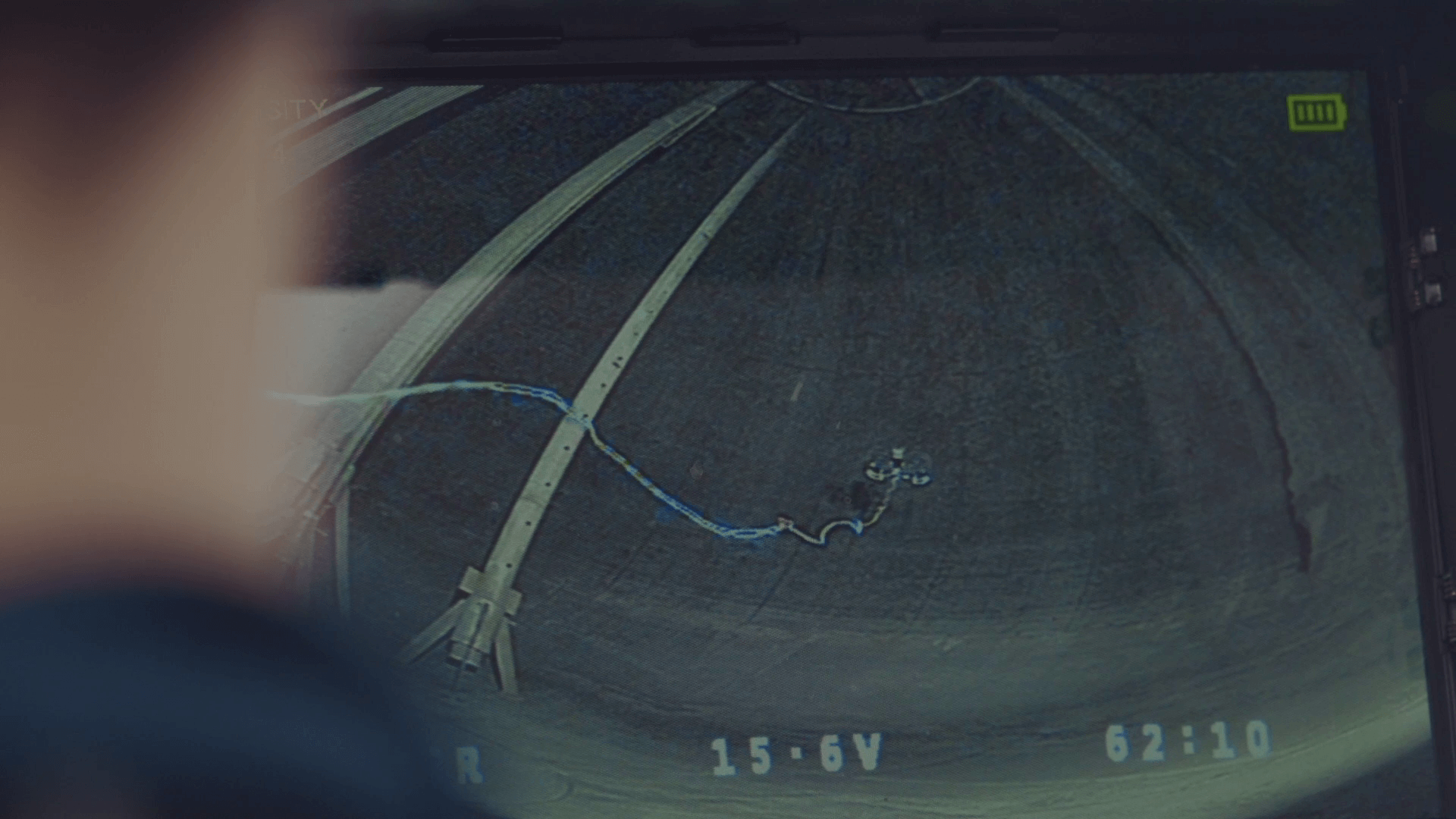

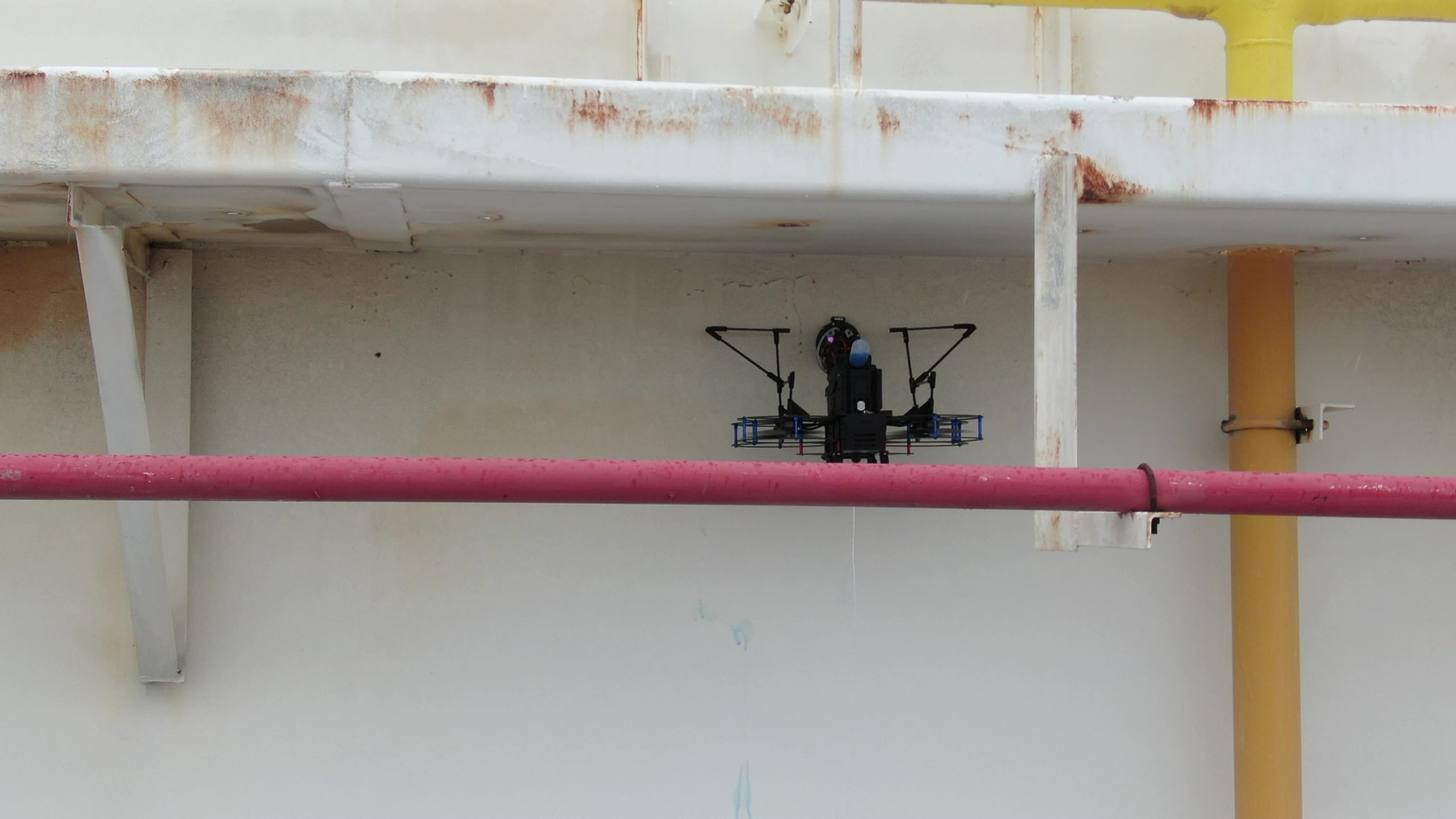

Tanks.

Replacing the need for scaffolding, our drones can
operate under GPS-denied circumstances to collect
the necessary data. Our flagship drone, The Raven,
was created inhouse to perform Ultrasonic
Thickness (UTG) Measurement on top of the
usual visual inspections.

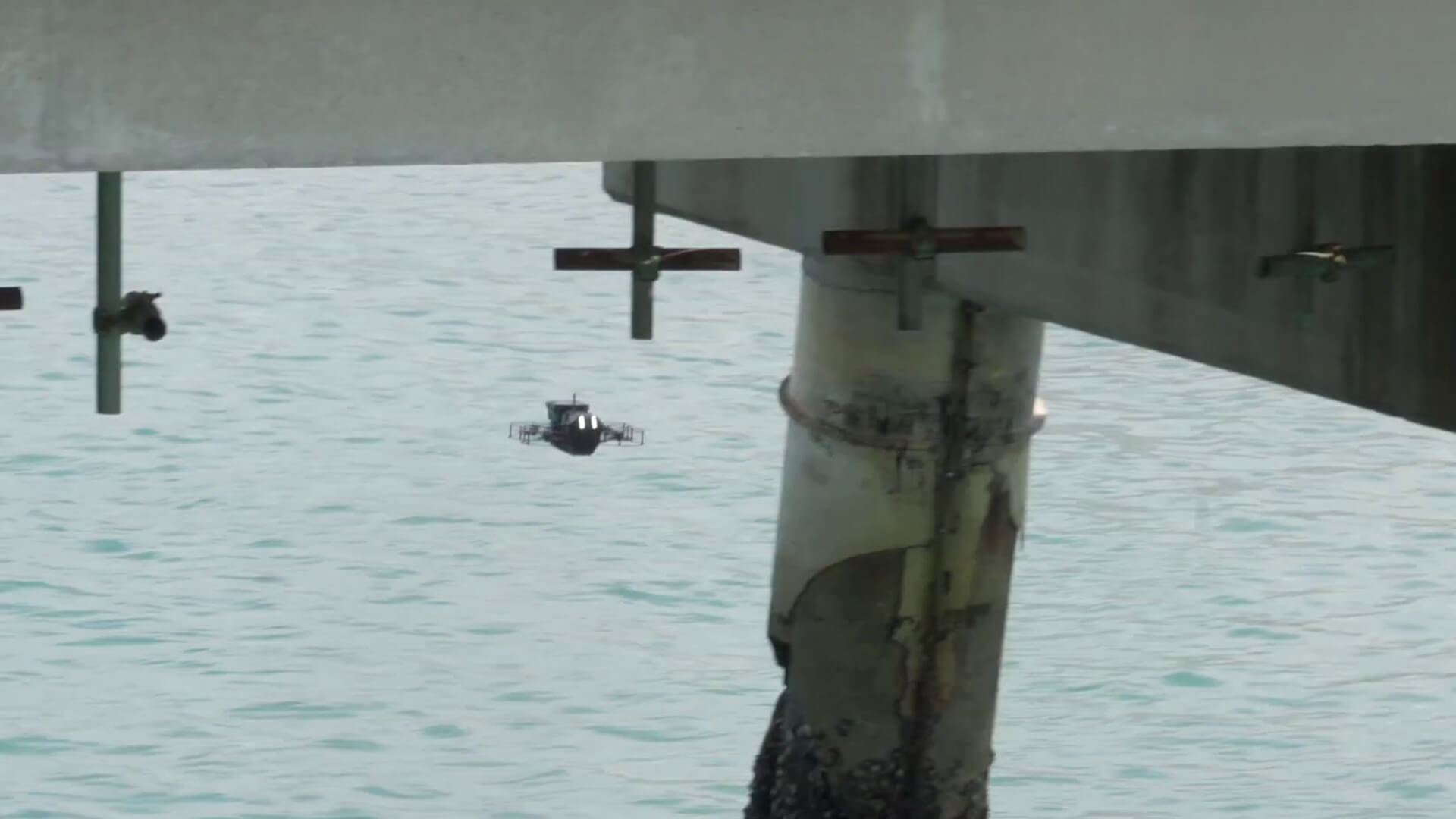

Jetties.

Agile and waterproof, our drones can maneuver
through tight spaces to inspect pipes
and other assets that are just
above water.

KINGFISHER.

KINGFISHER.

Flare Stacks.

Using H20 thermal and optical cameras, we are
equipped to perform thermal and visual
inspection for your flare stacks.

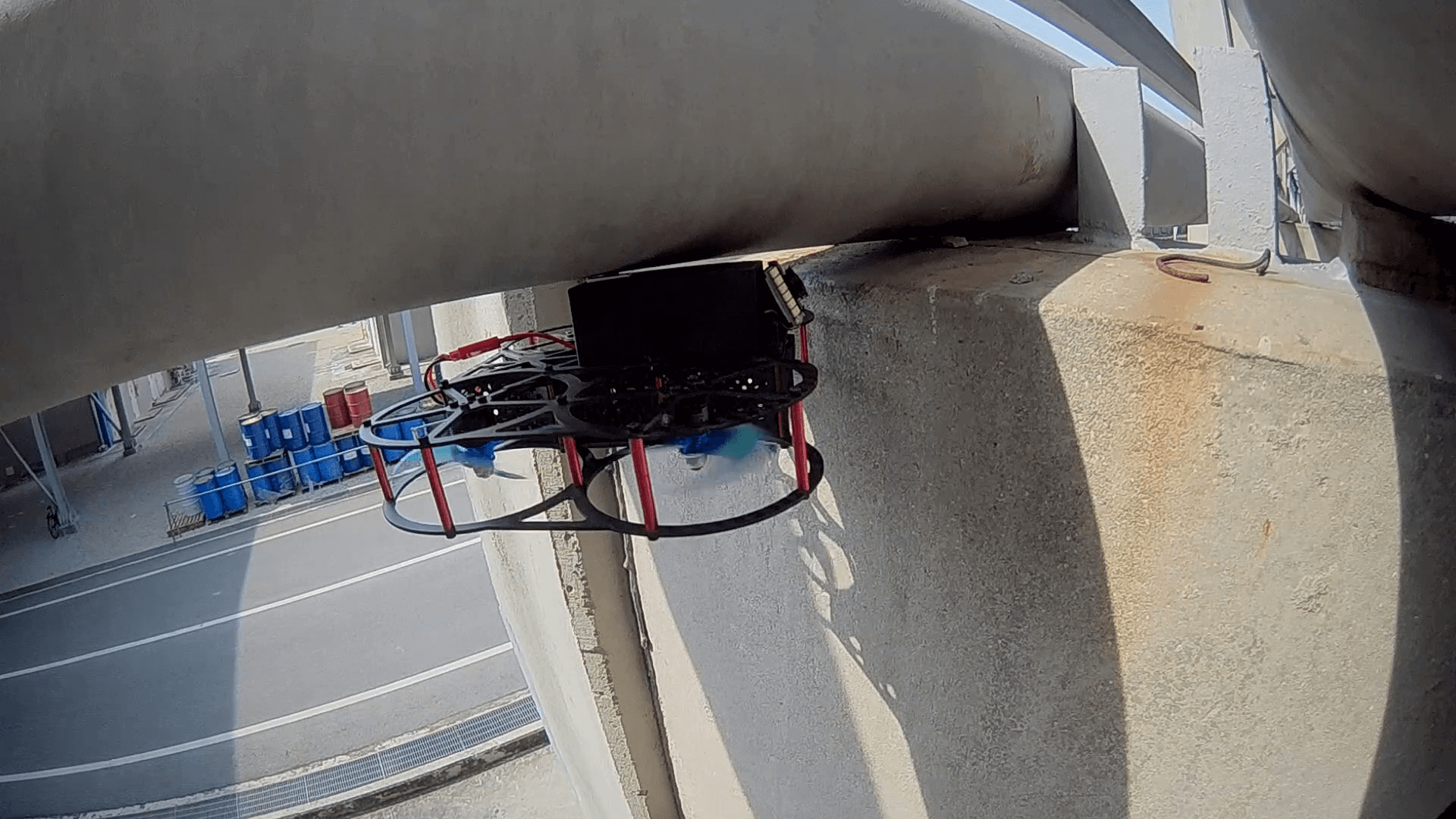

Pipes.

With our proprietary pipe-latching drones, Corrosion
Under Pipe Support (CUPS) inspections
have never been easier.

Speak

Our Custom Solutions.

Speak to our project managers today to find out how our solutions can be applied for your use case!

We harness the power of custom-designed drones, AI and data analytics to streamline operations, reduce costs, and eliminate hazards in heavy industries that is unparalleled by mainstream drones in the market.

Mini Cart 0

Your cart is empty.

Meet RAVEN-UTG, the smallest Ultrasonic Thickness Measurement drone

  • Mechanical & Electrically Protection
  • 01. Small 420x400mm 6″ propeller size
  • 02. Collision-Tolerant with guarded propeller frame design
  • 03. Isolated high power components for operations in Atex Zone2 environments (not Atex certified yet)
  • Operates in GPS Denied Environment
  • 01. Position Hold, Altitude Hold and all round Collision Avoidance
  • 02. Relative drone position available for inspection location identification
  • 03. Application base localisation for different environments and missions
  • 04. Operable in Dark Environments
  • 05. Tethered Power system up to 1hr flight time
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection/ navigation in pitch darkness
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • 04. Stabilized +/-90 degrees vertical axis adjustment camera for smooth recordings of roofs, walls and floors
  • Ultrasonic Thickness Gauge frame with multiple probe head options: Rolling Tank Shell / Pipes / 3-points
  • 01. Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/μs to 0.3150 in/μs)
  • 02. Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
  • 03. Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
  • 04. Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
  • 05. Couplant: Onboard couplant dispenser with quick change cartridge
  • 06. Speed: Up to 300 points per hour for external tank shell thickness measurements

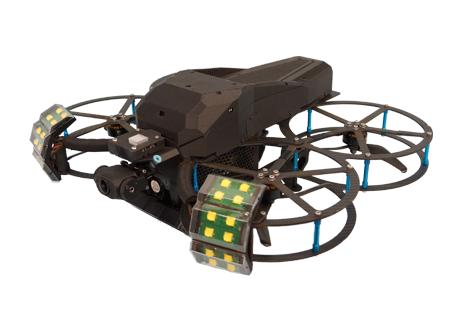

Meet RAVEN-VI, the smallest smart non-GPS assisted inspection drone

  • Compact mechanically and electrically protected airframe
  • 01. Small and compact 400*300mm 6.2” propeller frame
  • 02. Collision tolerant carbon fibre propeller guard design
  • 03. Isolated high power components for operations in zone 2 environments
  • Operates in GPS Denied Environment
  • 01. Onboard Position/ Altitude hold with responsive all round electronic collision avoidance
  • 02. Relative drone position available for inspection location identification
  • 03. Application base localisation for different environments and missions
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection/ navigation in pitch darkness
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • 04. Stabilized +-90 degrees vertical axis adjustment camera for smooth recordings of roofs, walls and floors
  • Multiple different configurations
  • 01. Visual Inspection Core - For visual inspections
  • 02. Customised Payload Core - Upon request
  • 03. Tethered/ Battery mode - All RAVEN models

Meet RAVEN-UTG, the smallest Ultrasonic Thickness Measurement drone

  • Mechanical & Electrically Protection
  • 01. Small 420x400mm 6″ propeller size
  • 02. Collision-Tolerant with guarded propeller frame design
  • 03. Isolated high power components for operations in Atex Zone2 environments (not Atex certified yet)
  • Operates in GPS Denied Environment
  • 01. Position Hold, Altitude Hold and all round Collision Avoidance
  • 02. Relative drone position available for inspection location identification
  • 03. Application base localisation for different environments and missions
  • 04. Operable in Dark Environments
  • 05. Tethered Power system up to 1hr flight time
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection/ navigation in pitch darkness
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • 04. Stabilized +/-90 degrees vertical axis adjustment camera for smooth recordings of roofs, walls and floors
  • Ultrasonic Thickness Gauge frame with multiple probe head options: Rolling Tank Shell / Pipes / 3-points
  • 01. Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/μs to 0.3150 in/μs)
  • 02. Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
  • 03. Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
  • 04. Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
  • 05. Couplant: Onboard couplant dispenser with quick change cartridge
  • 06. Speed: Up to 300 points per hour for external tank shell thickness measurements

Meet RAVEN-VI, the smallest smart non-GPS assisted inspection drone

  • Compact mechanically and electrically protected airframe
  • 01. Small and compact 400*300mm 6.2” propeller frame
  • 02. Collision tolerant carbon fibre propeller guard design
  • 03. Isolated high power components for operations in zone 2 environments
  • Operates in GPS Denied Environment
  • 01. Onboard Position/ Altitude hold with responsive all round electronic collision avoidance
  • 02. Relative drone position available for inspection location identification
  • 03. Application base localisation for different environments and missions
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection/ navigation in pitch darkness
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • 04. Stabilized +-90 degrees vertical axis adjustment camera for smooth recordings of roofs, walls and floors
  • Multiple different configurations
  • 01. Visual Inspection Core - For visual inspections
  • 02. Customised Payload Core - Upon request
  • 03. Tethered/ Battery mode - All RAVEN models

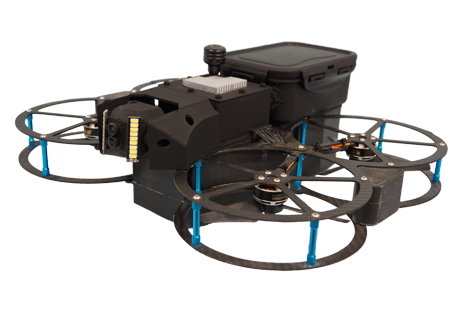

Meet KINGFISHER, waterproof inspection drone

  • Durable and Waterproof construction
  • 01. Small and compact 360*300mm*130mm 5” propeller frame
  • 02. Collision tolerant carbon fiber propeller guard design
  • 03. IP67 tested fuselage
  • Operates in GPS Denied Environment
  • 01. Not affected by metal structures
  • 02. Able to flip when in water
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • Wide Field of View
  • 01. 170 degrees passive FoV with lens
  • 02. 260 degrees Vertical active FoV with actuator

Meet KINGFISHER, waterproof inspection drone

  • Durable and Waterproof construction
  • 01. Small and compact 360*300mm*130mm 5” propeller frame
  • 02. Collision tolerant carbon fiber propeller guard design
  • 03. IP67 tested fuselage
  • Operates in GPS Denied Environment
  • 01. Not affected by metal structures
  • 02. Able to flip when in water
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • Wide Field of View
  • 01. 170 degrees passive FoV with lens
  • 02. 260 degrees Vertical active FoV with actuator

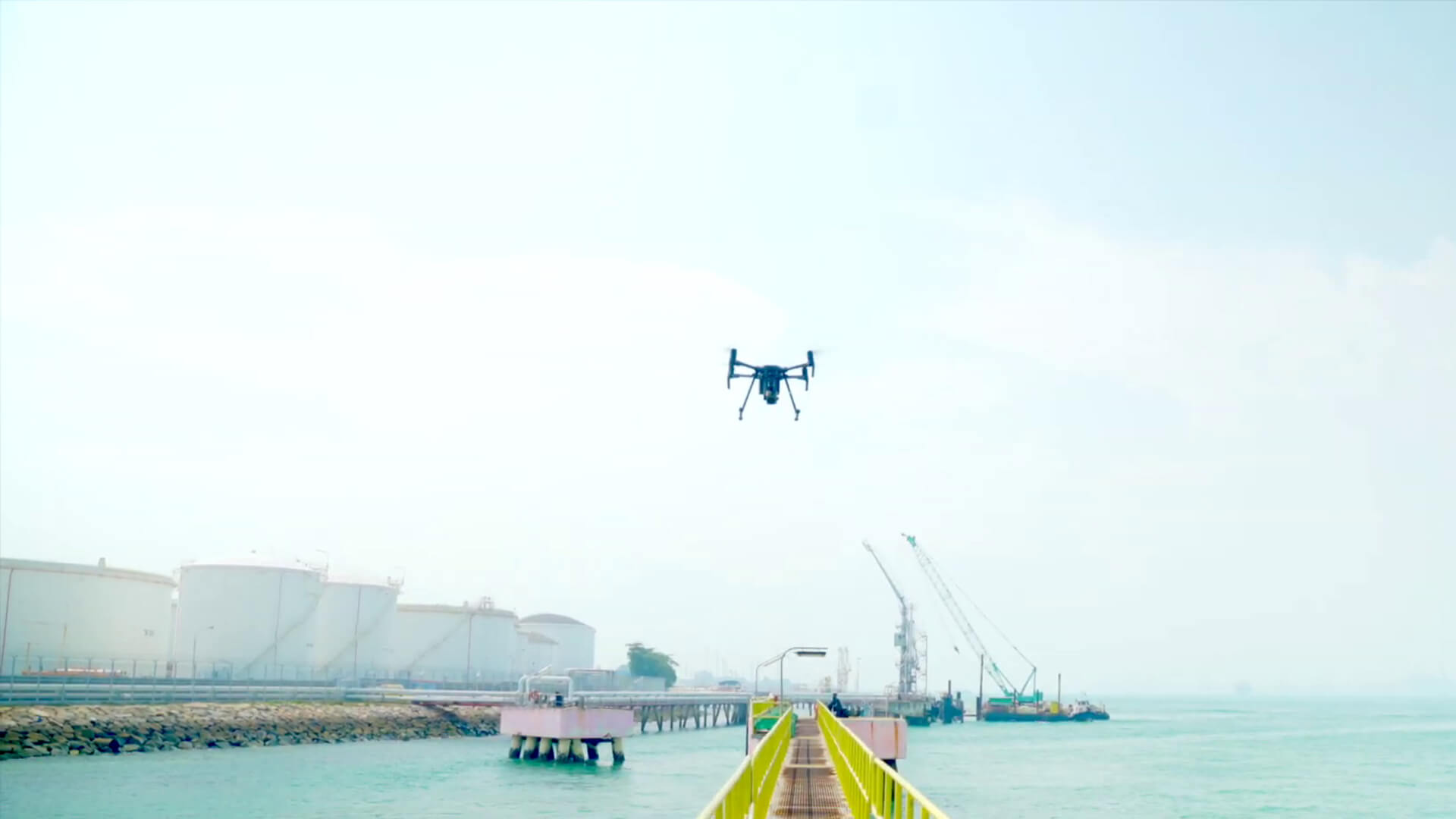

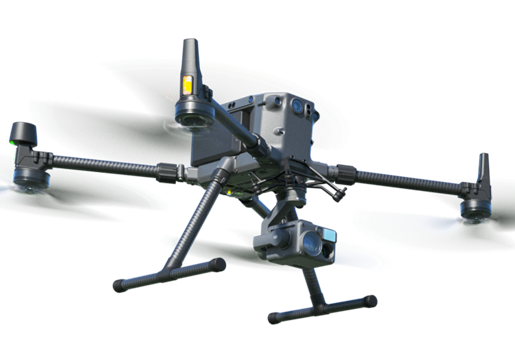

DJI Matrice 300 RTK

  • Commercial drone platform
  • 01. Outdoor GPS Drone
  • 02. Anti-collision Sensors
  • 03. IP45 Rating
  • Transmission system
  • 01. 15 km Transmission range
  • 02. RC & Video frequencies 2.4GHz and 5.8GHz
  • 03. Max flight time of 55 mins
  • Payload: Zenmuse H20 Camera
  • 01. Hybrid camera which includes optical and thermal sensors
  • 02. 12MP Wide angle camera
  • 03. 20MP Zoom camera with 23x optical zoom
  • 04. 620 x 512 px Radiometric thermal camera
  • Payload: Zenmuse P1 Camera
  • 01. 45 MP Full-frame photography for Aerial Surveying
  • 02. High Global shutter speed of 1/2000 seconds
  • 03. TimeSync 2.0 allows for microsecond level of synchronization
  • 04. Fixed-focus 35mm len

DJI Matrice 300 RTK

  • Commercial drone platform
  • 01. Outdoor GPS Drone
  • 02. Anti-collision Sensors
  • 03. IP45 Rating
  • Transmission system
  • 01. 15 km Transmission range
  • 02. RC & Video frequencies 2.4GHz and 5.8GHz
  • 03. Max flight time of 55 mins
  • Payload: Zenmuse H20 Camera
  • 01. Hybrid camera which includes optical and thermal sensors
  • 02. 12MP Wide angle camera
  • 03. 20MP Zoom camera with 23x optical zoom
  • 04. 620 x 512 px Radiometric thermal camera
  • Payload: Zenmuse P1 Camera
  • 01. 45 MP Full-frame photography for Aerial Surveying
  • 02. High Global shutter speed of 1/2000 seconds
  • 03. TimeSync 2.0 allows for microsecond level of synchronization
  • 04. Fixed-focus 35mm len

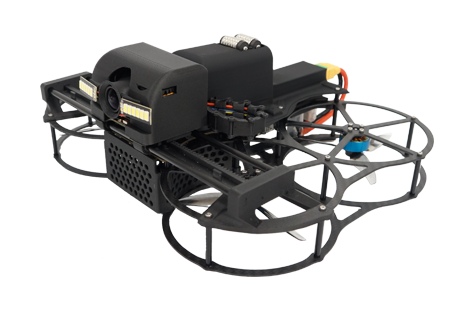

Meet SPARROW, the smallest versatile inspection drone

  • Mechanical & Electrically Protection
  • 01. Small and compact 270*240mm 4” propeller frame
  • 02. Collision tolerant carbon fibre propeller guard design
  • 03. Isolated high power components & Anti-spark battery connectors for operations in Atex Zone2 environments (not Atex certified yet)
  • Operates in GPS Denied Environment
  • 01. Onboard Camera with Overlay displaying drone telemetry and information
  • 02. Low latency camera enables operator corrections to allow drone to fly beyond line of sight even in GPS denied environments
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection/ navigation in pitch darkness
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • 04. +/- 30degrees vertical axis adjustment camera for smooth recordings of pipes, walls and floors
  • Multiple different configurations
  • 01. Smaller 220 x 180mm 3’ frame - For even tighter spaces that conventional drones cannot fit into
  • 02. Magnetic attachment - For an increase in stability when inspecting corrosion under Pipe Support
  • 03. Sliding Rail Attachment - To allow a left, right POV of the pipe being inspected without having to move the drone
  • 04. Tethered/ Battery mode - All Sparrow models are ready for use with powered-tethered flights with quick release battery modules

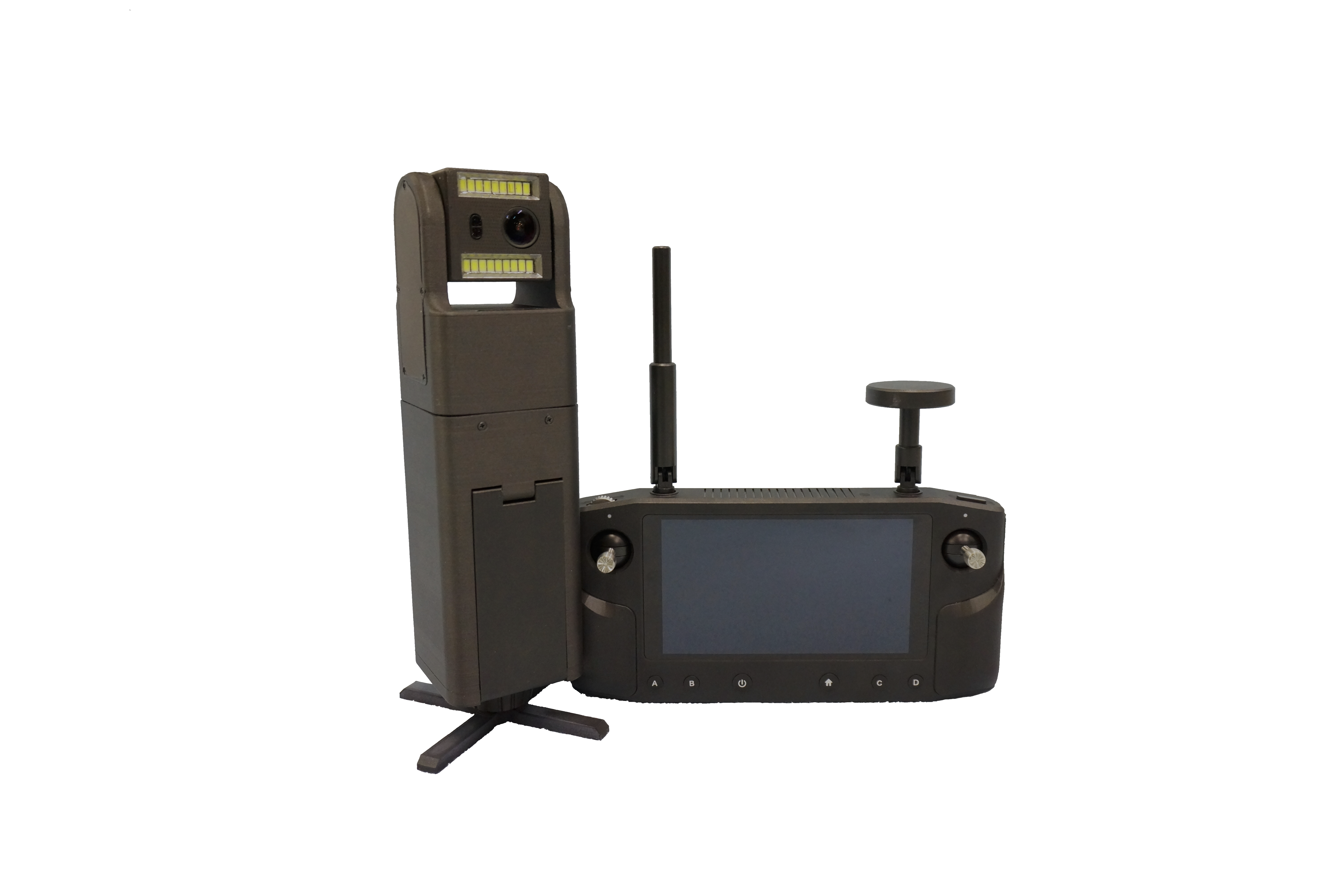

Eagle Eye Pole Camera

  • Simple and convenient system
  • 01. Telescopic high quality carbon fiber pole, extendable up to 15m
  • 02. Light weight and portable
  • 03. Quick access to SD card for data transfer
  • 04. Long range up to 10km wireless controls and video transmission
  • High Quality Inspection Camera
  • 01. Up to 4k 30fps or 2k 60fps recorded videos and 16MP captured photos
  • 02. High intensity LED illumination for inspection in pitch darkness
  • 03. Auto or Manual focus distance from 5cm to 1,000cm (0.05m to 10m)
  • Intuitive controls and display screen
  • 01. Adjustable camera tilt angle via long range wireless controller
  • 02. Inspection lights with dimmer control
  • 03. Displays height of camera for convenient localisation
  • 04. View inspection in real-time on transmitter’s screen and/or stream directly to laptops wirelessly

Meet SPARROW, the smallest versatile inspection drone

  • Mechanical & Electrically Protection
  • 01. Small and compact 270*240mm 4” propeller frame
  • 02. Collision tolerant carbon fibre propeller guard design
  • 03. Isolated high power components & Anti-spark battery connectors for operations in Atex Zone2 environments (not Atex certified yet)
  • Operates in GPS Denied Environment
  • 01. Onboard Camera with Overlay displaying drone telemetry and information
  • 02. Low latency camera enables operator corrections to allow drone to fly beyond line of sight even in GPS denied environments
  • High quality illuminated inspection camera
  • 01. Up to 4k30fps or 2k60fps recorded videos depending on mission requirements
  • 02. High intensity LED illumination for inspection/ navigation in pitch darkness
  • 03. Oblique lighting pattern for surface depth/ texture inspection
  • 04. +/- 30degrees vertical axis adjustment camera for smooth recordings of pipes, walls and floors
  • Multiple different configurations
  • 01. Smaller 220 x 180mm 3’ frame - For even tighter spaces that conventional drones cannot fit into
  • 02. Magnetic attachment - For an increase in stability when inspecting corrosion under Pipe Support
  • 03. Sliding Rail Attachment - To allow a left, right POV of the pipe being inspected without having to move the drone
  • 04. Tethered/ Battery mode - All Sparrow models are ready for use with powered-tethered flights with quick release battery modules

Eagle Eye Pole Camera

  • Simple and convenient system
  • 01. Telescopic high quality carbon fiber pole, extendable up to 15m
  • 02. Light weight and portable
  • 03. Quick access to SD card for data transfer
  • 04. Long range up to 10km wireless controls and video transmission
  • High Quality Inspection Camera
  • 01. Up to 4k 30fps or 2k 60fps recorded videos and 16MP captured photos
  • 02. High intensity LED illumination for inspection in pitch darkness
  • 03. Auto or Manual focus distance from 5cm to 1,000cm (0.05m to 10m)
  • Intuitive controls and display screen
  • 01. Adjustable camera tilt angle via long range wireless controller
  • 02. Inspection lights with dimmer control
  • 03. Displays height of camera for convenient localisation
  • 04. View inspection in real-time on transmitter’s screen and/or stream directly to laptops wirelessly
